CO2 Laser Engraving & Cutting Machine
Technical Specification
| Machine Model | SMAZE 60/80/100/150 |
|---|---|
| Working size | 1000mmL*1600mm、 1300mmL*900mm |
| Laser tube power | 60w/80/100W/150W |
| Cooling mode | Water cooling and protection system |
| Laser type | Co2 laser tube |
| MAX engraving speed | 0-70000mm/min |
| Cutting speed | 0-40000mm/min |
| Max moving Speed | 30000mm/min |
| Resetting positioning | < 0.01mm |
| Min forming character | 1x 1mm |
| Operating temperature | 0 – 45°C |
| Operating humidity | 5-95℃ |
| Power supply | 220V±10% 50HZ or 110V±10% 60HZ |
| Picture Formats Supported | PLT/DXF/BMP/AI (Direct output) JPG,GIF,PGN,TIF(Conversion output) |
| Software supported | Direct output software: CorelDraw, AutoCAD, LASERCUT Design software: PhotoShop, ArtCut, Adobe Reader |
| Driving system | Stepper motor |
| Control system | Advanced DSP controlling system |
| Data transfer interface | USB flash disk / directly from computer |
| Operation | Windows 2000/vista/XP/07 |
| software | Lasercut5.3 |
| Laser output control | 1-100% software setting |
| Highest scanning engraving | 2500DPI |
| Control system | DSP offline control system |
| Accessories parts | 1 laser tube,lens and mirror 2 water pump,air pump,exhaust fan 3 DSP control system,lasercut5 4 software,English manual,tool box,CD etc |
| Optional parts | 1.Work table: Motorized up and down table/Honeycomb table/blade table 2.Rotary attachment with roller 3.Rotary attachment with clip 4.Red dot pointer |
| Spare parts(Recommended) | Extra 1 lens and 3mirrors Extra Laser tube |
| Package | Plywood box |
Features
- Easy operation software, compitable for all formats from CorelDraw, Photoshop, AutoCAD etc.
- Modular Design easy for the system integration & maintenance.
- Real time visible live Pointer for preview your mark.
- User friendly interface, easy operation.
- High Speed, Precision, consistent marking quality.

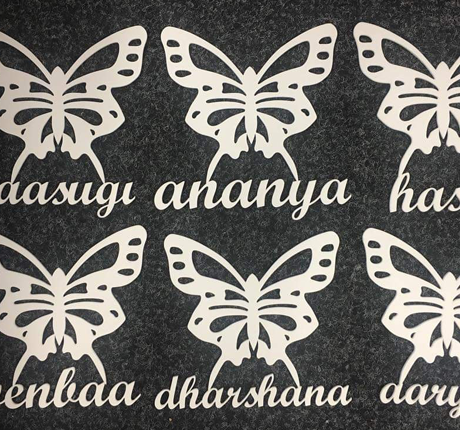

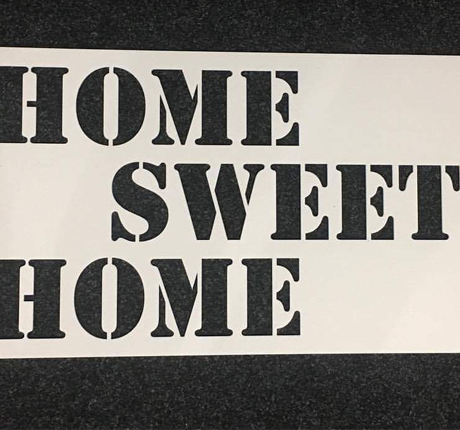

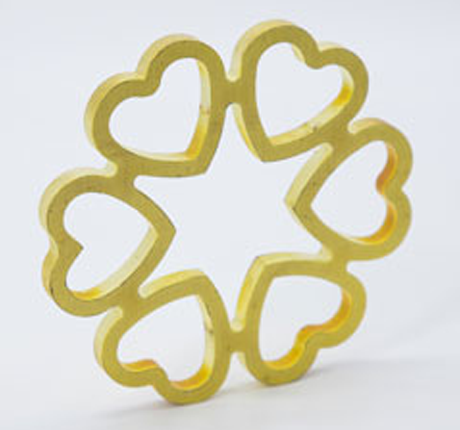

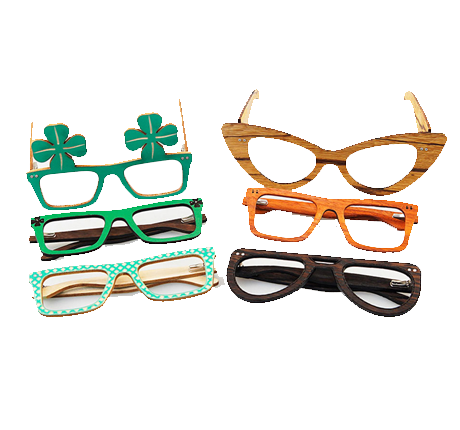

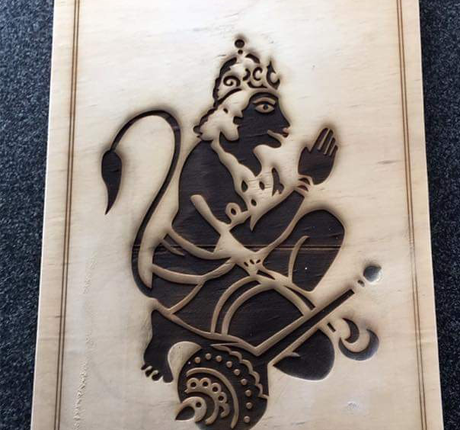

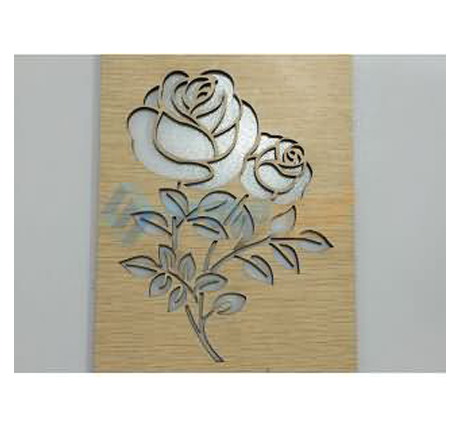

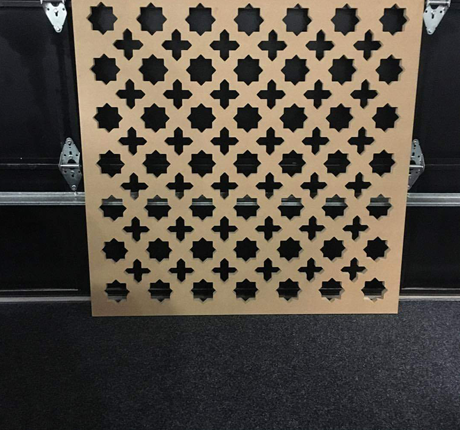

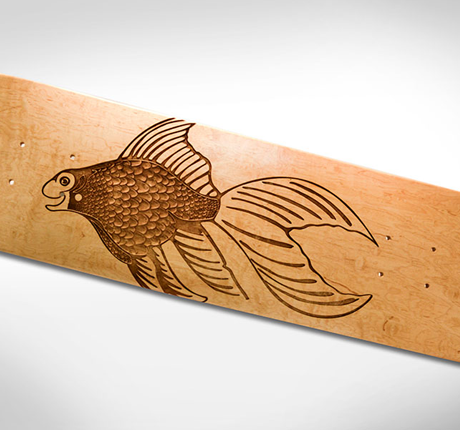

Product Samples
At Divine laser industries, we are one of the leading manufacturers and suppliers of premium quality co2 laser engraving and cutting machines. Since inception, we have been engaged in offering a wide variety of laser cutting and engraving machines for cutting and engraving on different types of materials such as acrylic, leather, wood, fabric ,plastic etc with high speed and accuracy. Owing to high quality, durability, easy installation, excellent performance and low maintenance, our co2 laser machines are being increasingly adopted by our clients from various industries such as fabric industry, leather industry, shoe industry, acrylic cutting, pen engraving industry etc. Designed and manufactured using superior grade components and advanced technology in compliance with international quality standards, our co2 laser engraving & cutting machines are highly durable and enable high speed laser marking processes on various kinds of non-metals such as PET bottle, Acrylic, Wood, Leather, MDF, Fabric, Paper etc.
Backed by a state of the art infrastructure unit equipped with advanced machineries and world class technologies and a team of adroit professionals, we are engaged in mass manufacturing of MDF Laser Cutting Machines and Acrylic Laser Cutting and Engraving machines. Being a leading co2 laser engraving & cutting machine manufacturer, we strive to cater to the diverse needs of the industries and thus we offer products in diverse technical specifications to satisfy their needs for engraving and cutting.
All our laser cutting and engraving machines including MDF Laser Cutting Machines and Acrylic Laser Cutting and Engraving machines are extremely easy to install and maintain and offer versatile solutions to a variety of industries. Encompassing the latest and powerful laser technology and highly advanced features, they offer the desired precision in engraving and cutting. Being a customer centric firm, we sincerely care about all our customers and their experiences and thus closely communicate with them. All this has helped us attain high levels of customer satisfaction and stay ahead of other competitor firms.
Advantages
- High stability laser tube, high quality lens and mirror, long life-span.
- Automatic up & down table design satisfies the customers need of engraving thick materials.
- Adopt advanced Ruida control system and easy to operate, international standard laser power supply, USB interface output can support off-line working.
- Strong software function, compitable with CorelDraw, AutoCAD and so on.
- Auto focus system, water pump, air pump and rotary attachment are optional.
Ability
CO2 Laser Engraving Cutting Machine is widely used in mould industry, advertising, decoration, arts and crafts, electronic appliances, etc.And It is widely used for engraving & cutting on wood, acrylic, PVC plastic, plexiglass, architectural models, rubber plates, bamboo products and so on.
